Rotary Bending and Roll Bending Solutions

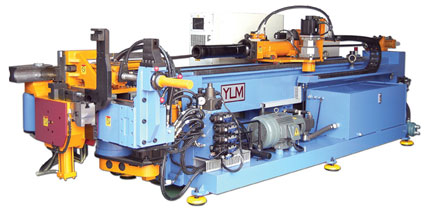

CNC 80 Booster Bender

Suitable Industries

Especially for the production of "Thick Wall" Pipes such as Boiler, Heavy Transportation, Shipbuilding, Chemical Engineering, Power Plant, Diesel Engine.

Specification

Max. Bending Capacity

Model No.

80 S2

80 S3

Ø 3.150" x ø .120"
O.D. x W.T.

The CNC 80 MSRSM is an EIGHT AXIS servo controlled machine to allow the maximum control of the applied forces of the machine. The Axes that are under servo control are:

1. Carriage Feeding
2. Collet rotation
3. Bending
4. Head shift left and right
5. Head shift up and down
6. Pressure Die up and down
7. Pressure Die boost during bending
8. Carriage booster during bending. This is a patent pending system that engages an additional servomotor during the bending cycle to provide the additional force to allow working with thin wall material or tight radius bending.

Specifications CNC Features
