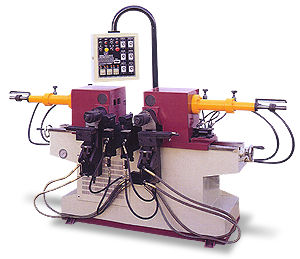

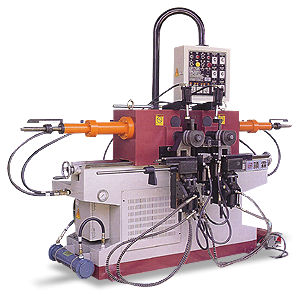

Double Head Tube Benders
 |
| CR – T38 |
 |
| CR – T50 |
 |
| CR – E38 |
|
Features:
- Individual
solenoid valves with integrated circuit to
control individual motions separately extending
the life of hydraulic components.
- Three
step hydraulic oil flow system combines the
functions of cooling, contaminant sedimentation
and preventing deterioration.
- Bending
machines equipped with manual hydraulic flow
valves to control the speed of bending motion.
- Bending
motion controlled by positive stops to
increase
the accuracy of desired bending angles.
- Different
angle can be selected for each side to create
multiple bending sequences.
- Both
manual and automatic operations are available
and machines are equipped with Emergency Stop.
- The
main shaft is heat treated. All parts are
tested and assembled with strict quality control
to meet the specification of ISO 9002 and
CE standard.
-
Easy to read and user friendly functions
allows new operators to join production
force rapidly.
- Production
capacity:
Produce 720 pcs (Max) with two-end bending
per hour.
- The
distance between the center line of 2 main
shafts:
Min 85mm, Max 1200mm
- Production
Capability:
- Bend
1 piece for 1-1/4" ~ 1-1/2" O.D.
tubes
- Bend
2 pieces at same time for 1" O.D. tubes
- Bend
up to 6 pieces (Max) at the same time for
7/8" O.D. tubes and smaller
|
Model |
OD * Wall |
Radius Range |
Bending Degrees |
Horse Power |
Total Length |
Total Width |
Total Height |
Total Weight |
Bending Speed |
|
|
|
|
|
|
|
|
|
|
CR – T38 |
1-1/2" x .078" |
1" ~ 6.690" |
0 ~ 180˚ |
7.5 Hp |
98" |
37.4" |
78.7" |
3087 lbs |
90˚ 3~4 Sec |
CR – T50 |
2" x .098" |
1" ~ 6.690" |
0 ~ 180˚ |
7.5 Hp |
98" |
37.4" |
78.7" |
2866 lbs |
90˚ 3~4 Sec |
CR – E38 |
1-1/2" x .078" |
1" ~ 7.000" |
0 ~ 110˚ |
7.5 Hp |
95" |
37.4" |
78.7" |
2650 lbs |
90˚ 3~4 Sec |
|
 |
|
|
