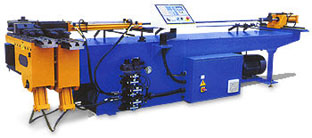

Features:

• Individual solenoid valves with integrated circuit to control individual motions separately extending the life of hydraulic components.

• Three step hydraulic oil flow system combines the functions of cooling, contaminant sedimentation and preventing deterioration.

• Bending machines equipped with manual hydraulic flow valves to control the speed of bending motion.

• Bending motion controlled by low speed positioning to increase the accuracy of desired bending angles. Various angles can be selected to create multiple bending sequences eliminating material loading/UN-loading time, the usage of a separate machine, and accumulating additional labor cost.

• Based on the tube diameter, wall thickness and bending radius, machine operator may select to bend parts with or without a mandrel.

• Removable tooling post allows for small radius tooling mounting to the base provides flexibility in bending.


Touch Screen

• 6" grey mode touch screen simplifies machine operation and function selection with icons.

• Controlled by a PLC base, storage up to 200 bending programs with maximum of 20 bending angles.

• Bending motion is sensed and calculated by micro encoder, the angle tolerance is ± 0.1˚.

• Hydraulic pressure die with repeat forwarding and retraction function to minimize the die length.

• 2 step mandrel retraction or anticipated retraction standard for working with ball mandrels.

• Based on the tube information the operator can set delayed timing for each motion.

• The control detects and pinpoints malfunctioning source for operator to inspect or correct problems.

Model

OD * Wall

Radius Range

Bending Degrees

Horse Power

Total Length

Total Width

Total Height

Total Weight

Bending Speed

NC 38 TSQ

1-1/2" x .078"

.400" ~ 13.780"

0 ~ 210˚

5 Hp

98"

37.4"

78.7"

3087 lbs

90˚ 3~4 Sec

NC 50 TSQ

2" x .098"

.800" ~ 17.70"

0 ~ 190˚

10 Hp

98"

37.4"

78.7"

2866 lbs

90˚ 3~4 Sec

NC 80 TSQ

1-1/2" x .078"

1.180" ~ 17.700"

0 ~ 190˚

15 Hp

95"

37.4"

78.7"

2650 lbs

90˚ 3~4 Sec

NC 100 TSQ

0 ~ 190˚

25 Hp

NC 130 TSQ

0 ~ 190˚

35 Hp

NC 160 TSQ

0 ~ 190˚

40 Hp

NC 200 TSQ

0 ~ 190˚

50 Hp
