About MACKMAŽ the Machine

The  MACKMA® line of non-mandrel pipe bending machines provide one of the broadest full-line capacity ranges in the world, from 1” Sch.40 pipe (BM34 Model) up to 10” Sch.80 pipe (BM300 Model). Some of the more notable features of the MACKMA® line include:

  • All-Electric with Inverter for Energy Savings
  • Left/Right Bending with One Die-same tooling setup (Patented)
  • Cantilevered Head for Under-head Bending (Models BM42 to BM76)
  • Minimal Distance between Bends
  • Adaptation to accept other manufacturer’s bend dies
  • Two (2) year warranty on mechanical parts
  • Quick release return clamp design minimizing tube marking. (Patented)
  • Optional Programmable Control w/ up to 100 Program Storage



mackma

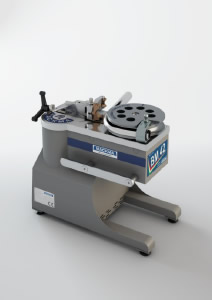

  BM34 BM42
Tube - Mild Steel 38 x 2 mm
1.500 x .078"
48 x 1.5 mm
1.890 x .060"
Tube - 304 Stainless 33.4 x 1.5 mm
1.315 x .060 "
42 x 1.5 mm
1.650 x .060"
Pipe - Sch. 80 1” 1¼”
Maximum Radius 6.69” 10.20”



mackma

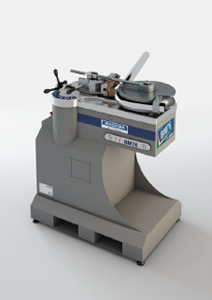

  BM48 BM60 BM76
Tube - Mild Steel 48 x 4 mm
1.890 x .157"
64 x 5 mm
2.500 x .200"
76 x 3 mm
3.000 x .120"
Tube - 304 Stainless 48 x 2 mm
1.890 x .078"
64 x 3 mm
2.500 x .120"
70 x 4 mm
2.750 x .157"
Pipe - Sch. 80 1˝"  2"  2˝"
Maximum Radius 10.20"  14.95"  14.95"



mackma

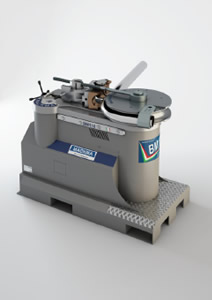

  BM100 BM125 BM150
Tube - Mild Steel 110 x 4 mm
4.330 x .157"
141.3 x 4.78 mm
5.560 x .188"
168.3 x 7.11 mm
6.625 x .280"
Tube - 304 Stainless 110 x 2.6 mm
4.330 x .100"
114.3 x 4.78 mm
4.500 x .188"
141.3 x 6.55 mm
5.560 x .250"
Pipe - Sch. 80 3˝"  4” 5”
Maximum Radius 15.75"  27.55"  33.40”
mackma

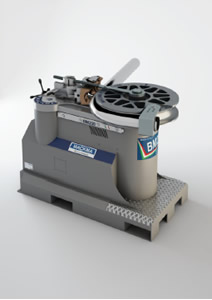

  BM200 BM250 BM300
Tube - Mild Steel 165.1 x 5.4 mm
6.500 x .212"
273 x 7 mm
10.750 x .275"
323.9 x 17.47 mm
12.750 x .687"
Tube - 304 Stainless 141.3 x 6.5 mm
5.560 x .250"
219.1 x 8.18 mm
8.625 x .322"
273 x 12.7 mm
10.750 x .500"
Pipe - Sch. 80 6” 8"  10"
Maximum Radius 35.40” 55.10” 66.90"
